Chairs Revit Families

1. GENERAL INFORMATION​

  • Set name: Chairs
  • Version: 1.0.0
  • Revit version: 2019

Description​

This Revit family set is intended for modeling chairs in Autodesk Revit.

Using these families, you can create basic shapes and types of chairs and bar stools, as well as popular designer models.

Suitable for interior designers and architects. For chair modeling by furniture manufacturers, the families are not detailed enough.

Loading and placing into the project​

To view and load the required families from the set, you can open the Chair Project and copy the families using the Ctrl+C keyboard shortcut, then paste them into your project using Ctrl+V. Alternatively, open the folder containing the family files and drag them into your project with your mouse.

2. SET STRUCTURE​

Chairs Revit Families — SET STRUCTURE

The set includes the following parametric families:

  • Chair
  • Bar Stool

Designer Chairs:

  • Chair Beetle
  • Chair Cesca B32
  • Chair Delo Нра
  • Chair Delo Тру
  • Chair Poliform
  • Chair T-chair
  • Chair Wishbone
  • Chair Wooden
  • Chair Foldable

3. FAMILIES​

Chair​

The Chair family is used to create basic chair shapes and types.

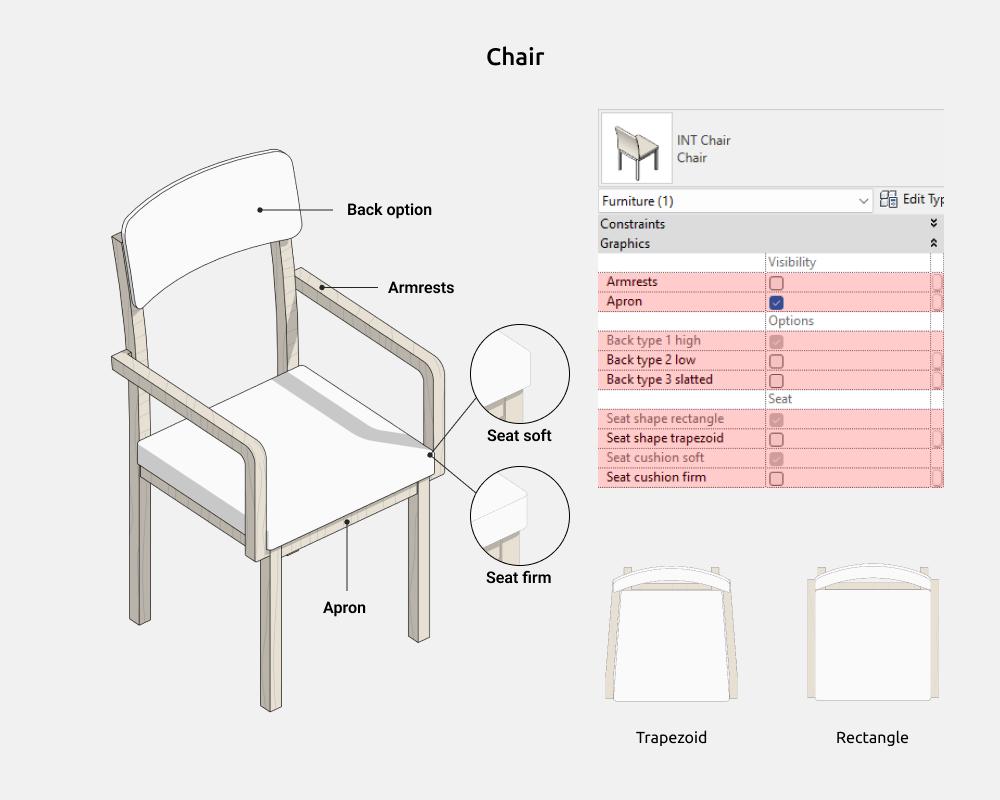

Chairs Revit Families — Chair

Here you can enable/disable the following elements:

  • Armrests
  • Aprons (these are horizontal slats connecting the legs of the seat around the perimeter)
  • Back type 1
  • Back type 2
  • Back type 3
  • Seat shape rectangle
  • Seat shape trapezoid
  • Soft seat
  • Hard seat

Dimensions​

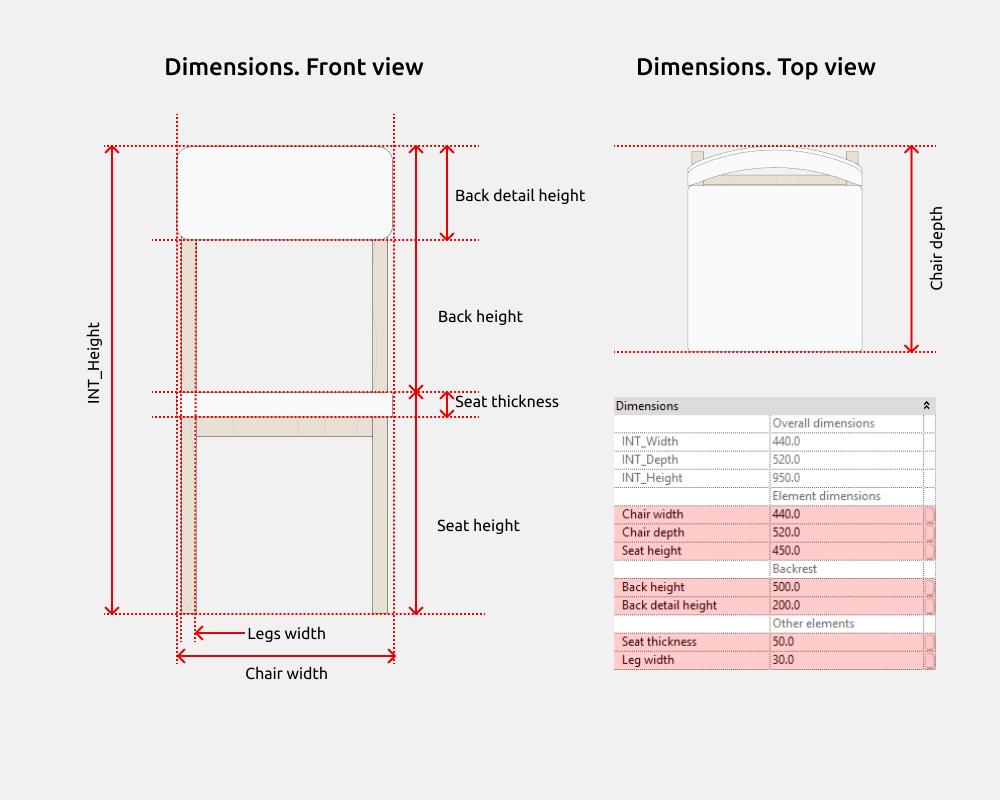

 Chairs Revit Families — Dimensions

INT_Height is the overall chair height parameter, which is the sum of the Backrest height and Seat height parameters that can be controlled.

Back options​

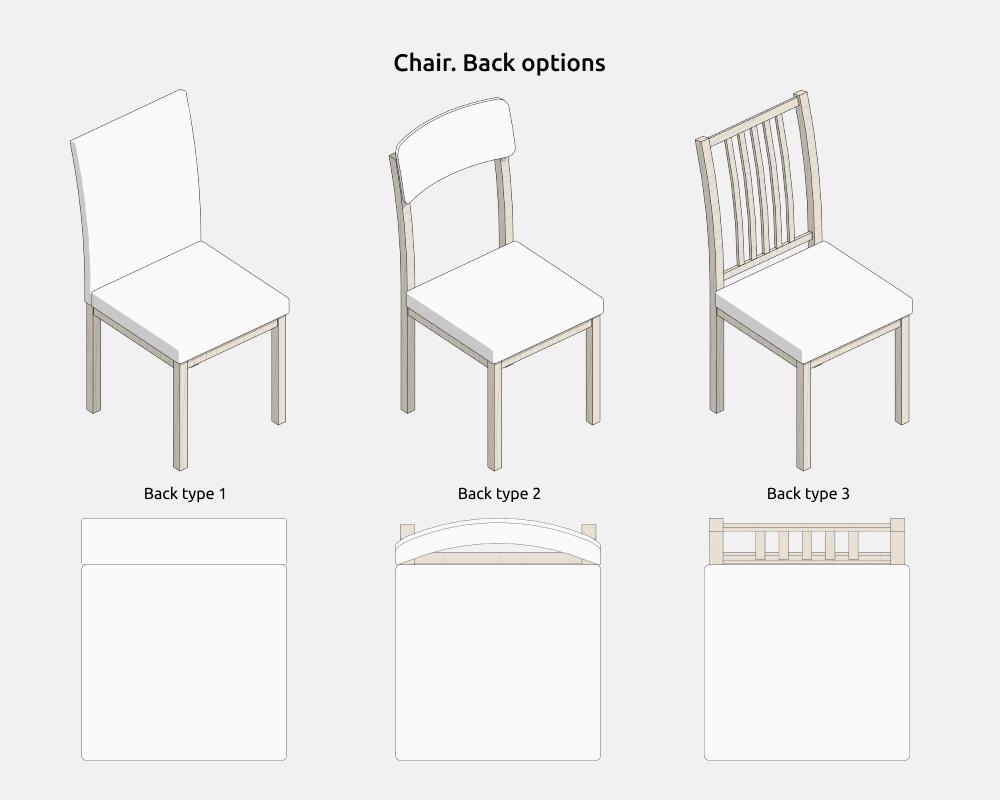

Chairs Revit Families — Back options

The number of backrest types is limited to three, the most common variants.

You can enable type 2 or type 3. If both of these types are disabled, type 1 is enabled.

Materials​

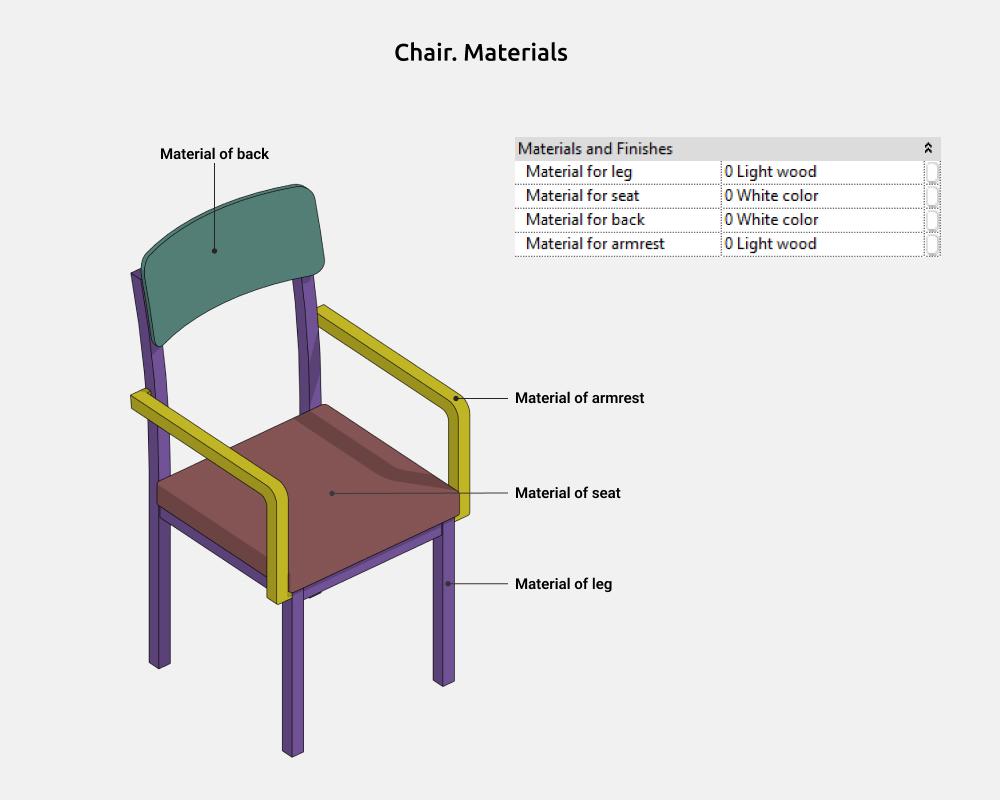

Chairs Revit Families — Materials

Bar Stool​

The Bar Stool family is used to create basic shapes and types of bar stools.

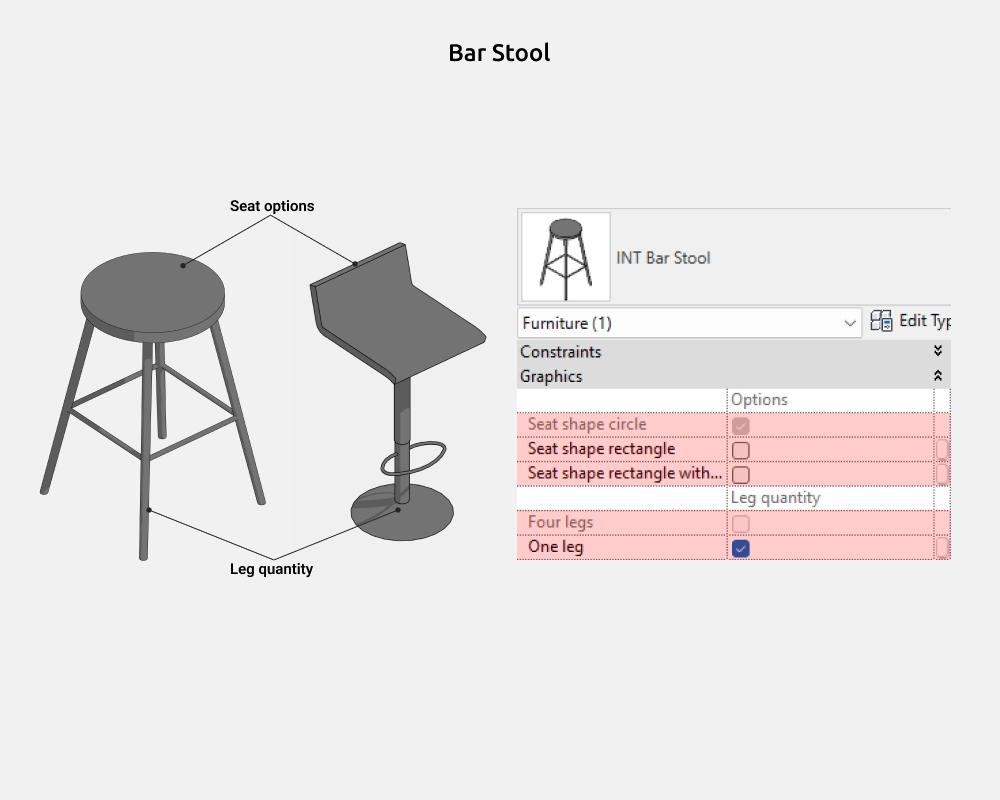

Chairs Revit Families — Bar Stool

Here you can enable/disable the following elements:

  • Seat shape circle
  • Seat shape rectangle
  • Seat shape rectangle + Back
  • Four legs
  • One leg

Dimensions​

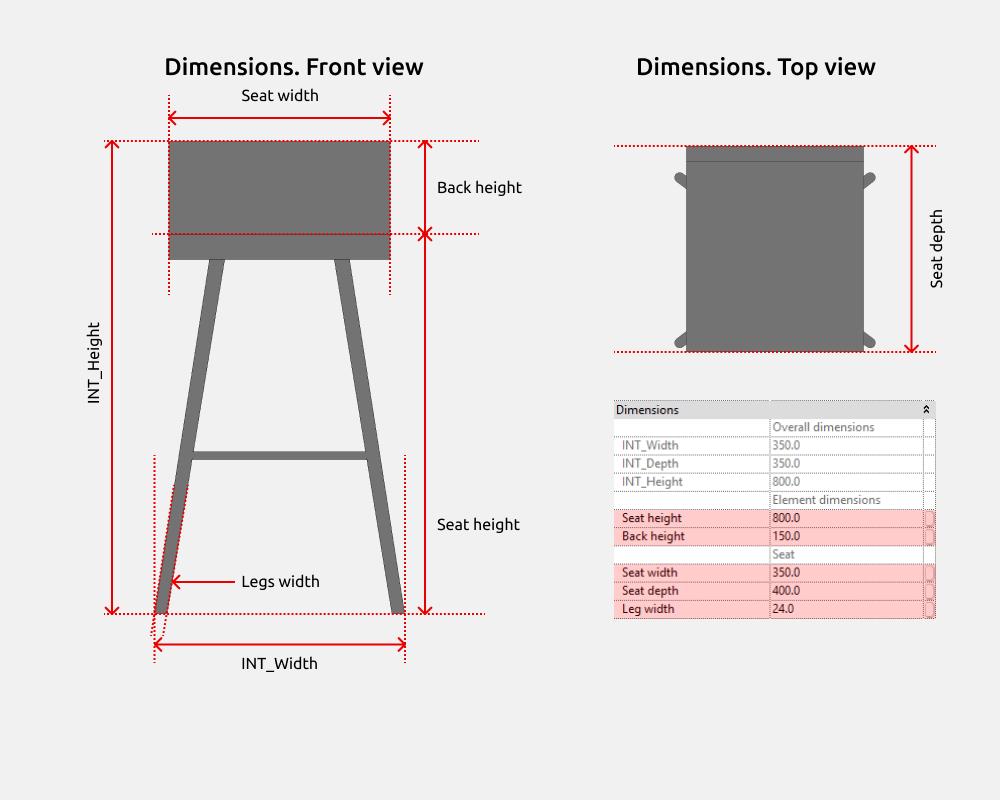

Chairs Revit Families — Dimensions

INT_Height is the overall bar stool height parameter, which is the sum of the Backrest height and Seat height parameters that can be controlled.

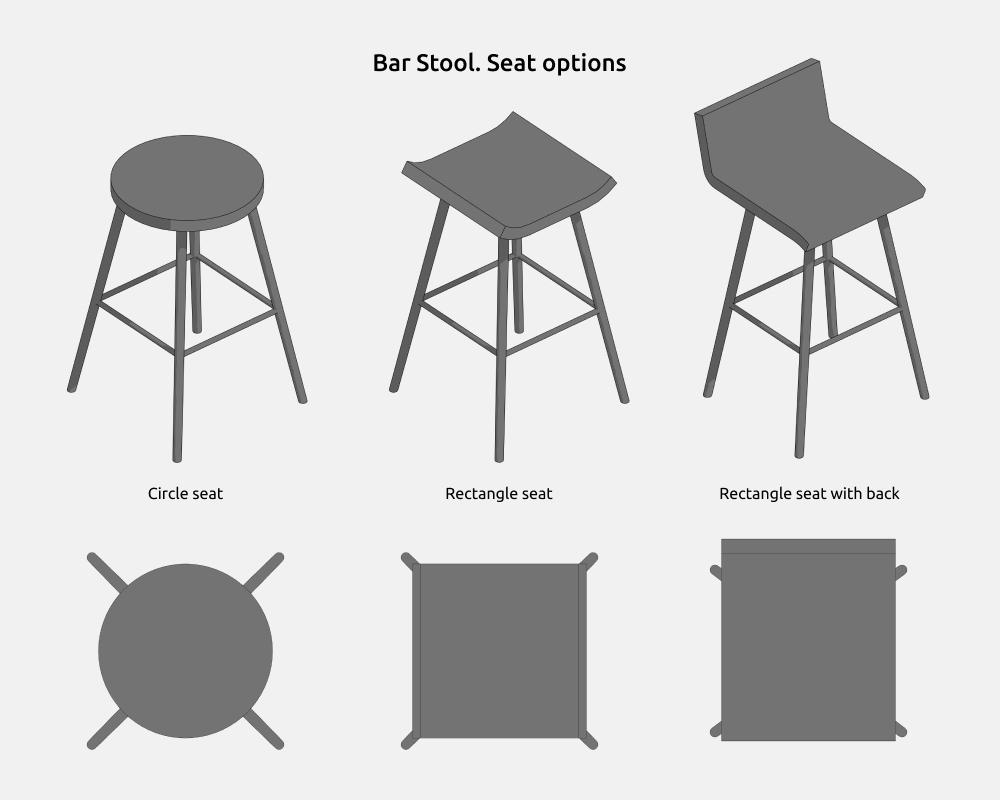

Seat options​

Chairs Revit Families — Seat options

The number of seat types is limited to three, the most common variants.

You can enable Rectangular seat or Rectangular seat + backrest. If both of these types are disabled, the seat is Circular.

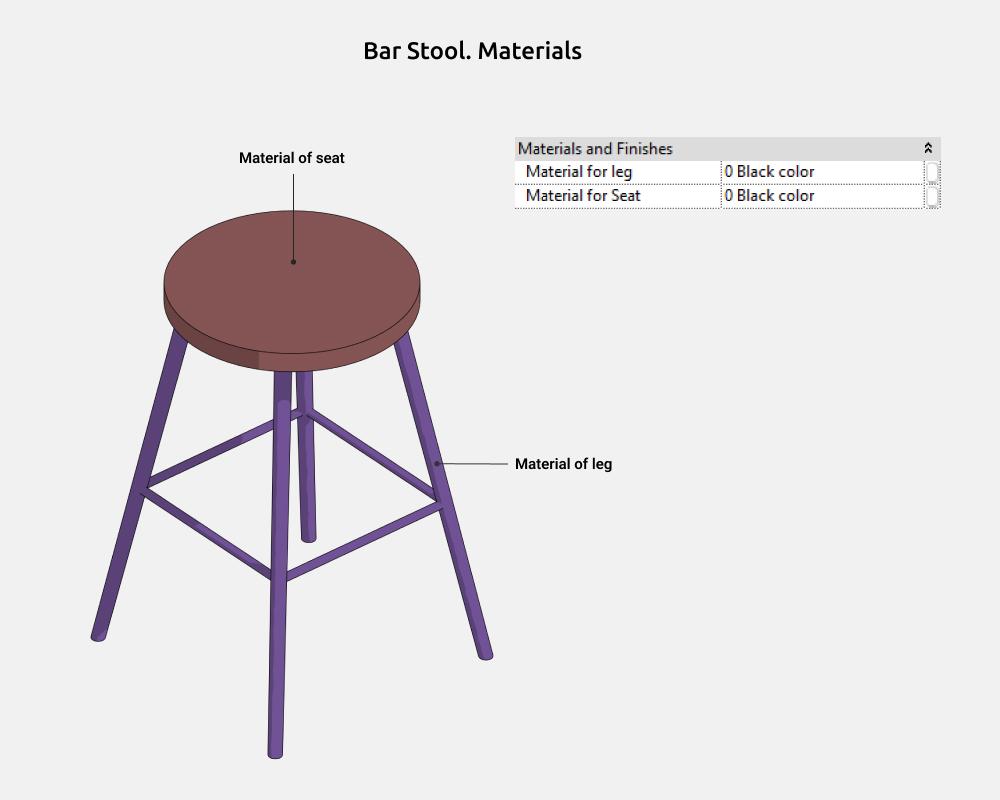

Materials​

Chairs Revit Families — Materials

Designer chairs​

All families in the Designer Chairs group are used to create existing designer chair models.

Chairs Revit Families — Designer chairs

They have a similar logic for adjusting dimensions and displaying elements (armrests, backrest, etc.) as the main Chair and Bar Stool families.
